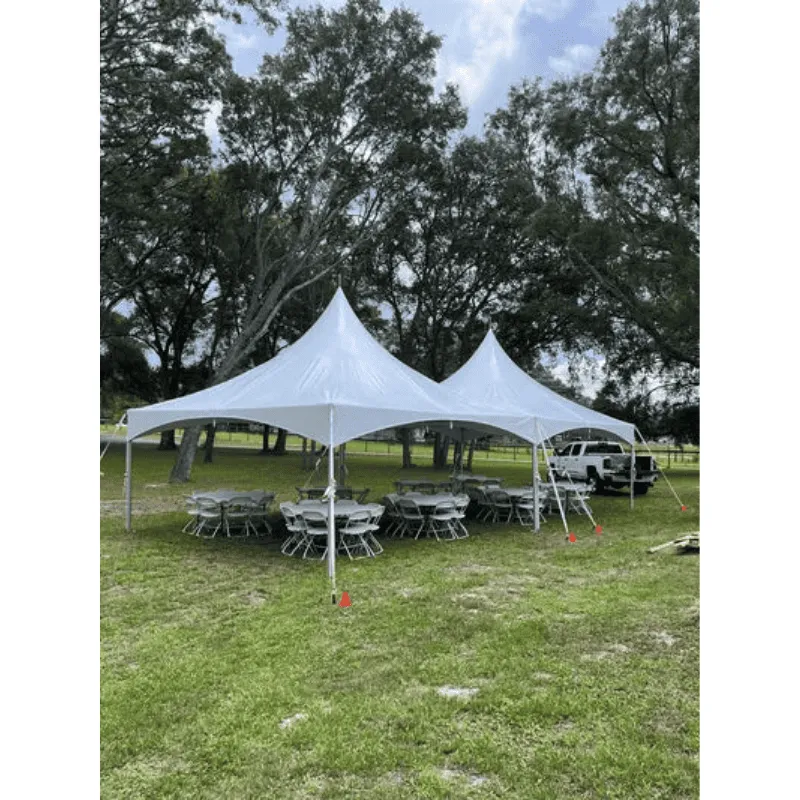

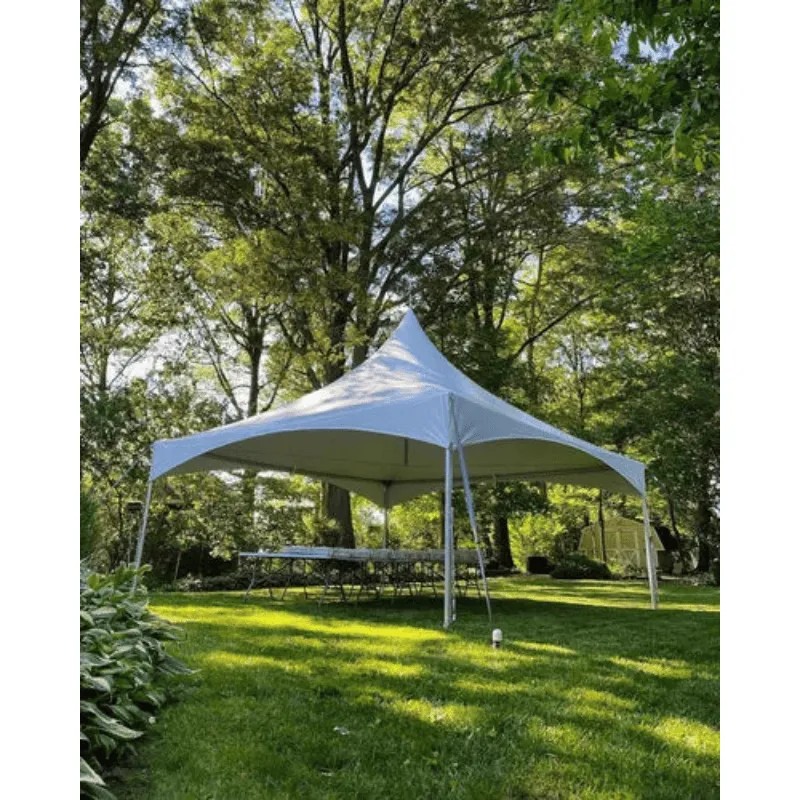

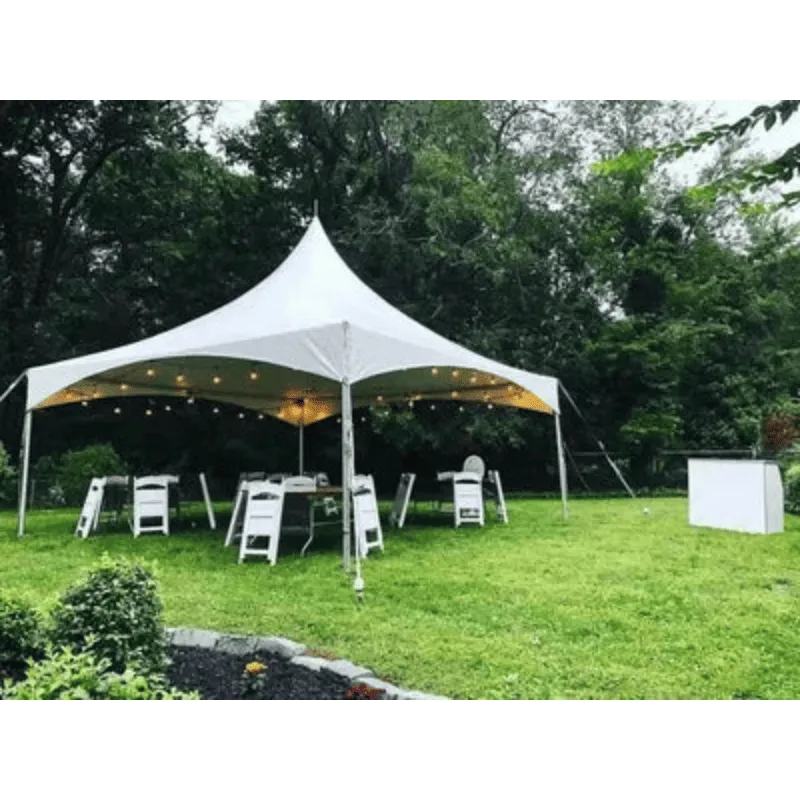

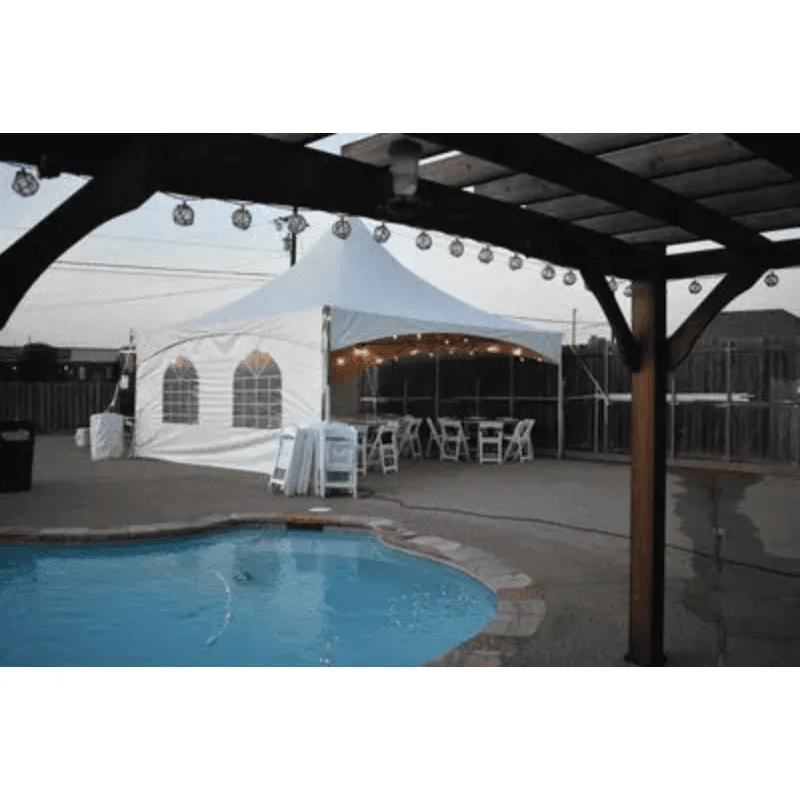

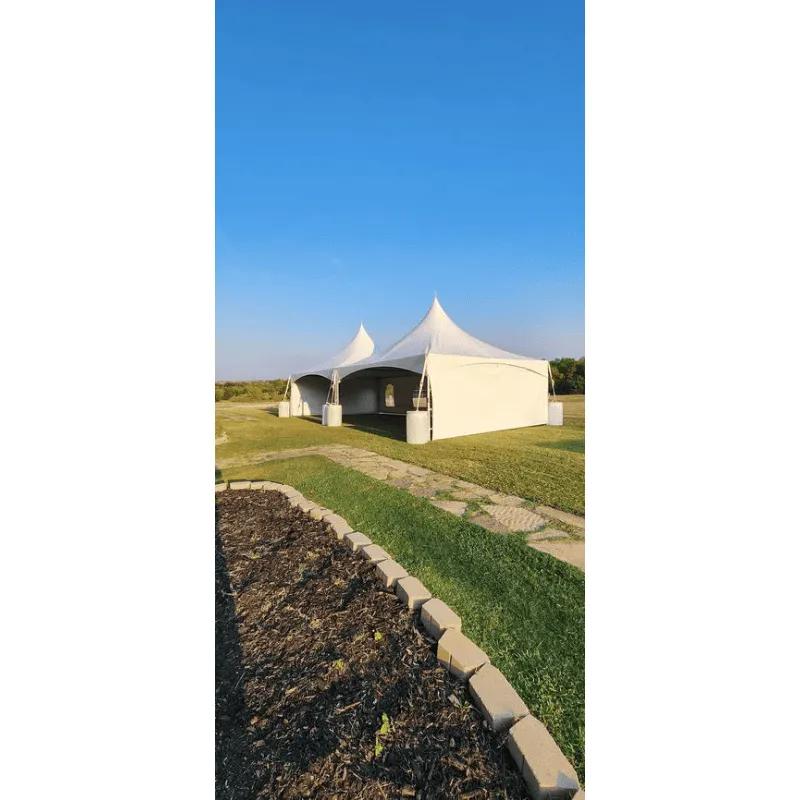

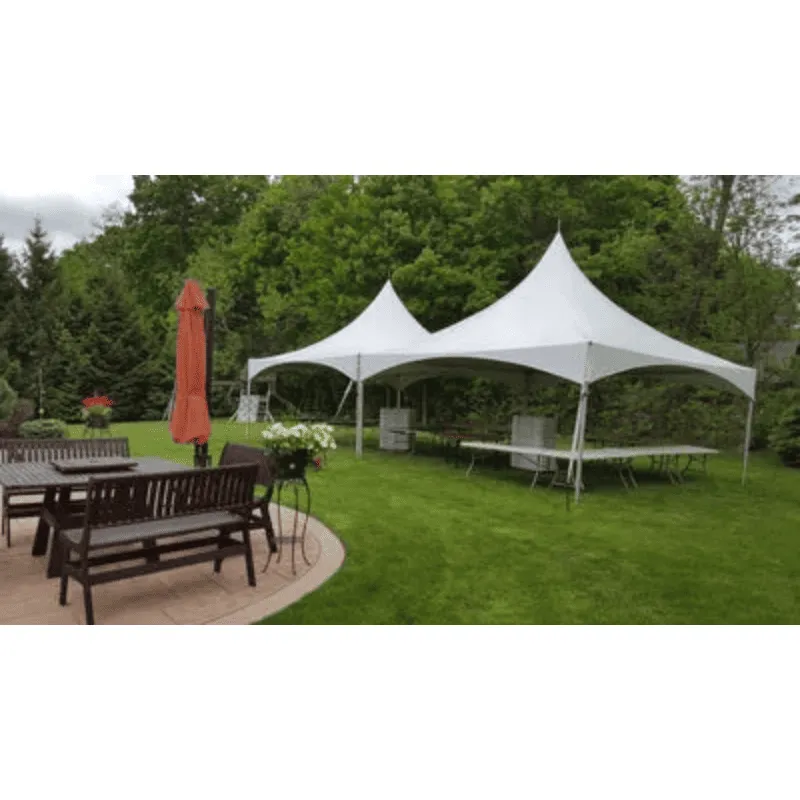

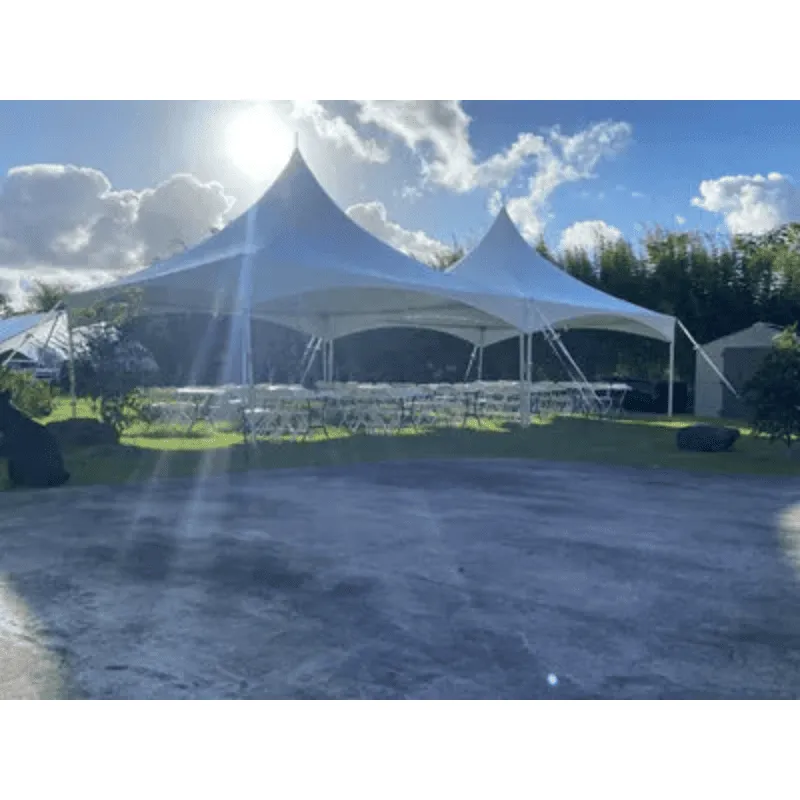

20x20 High Peak Cross Cable Frame Tent – Elegant, Durable Shelter for Any Event
The 20x20 High Peak Cross Cable Frame Tent is the perfect combination of elegance, strength, and convenience. Designed with a striking high-peak center and minimal internal poles, this tent offers maximum usable space and a clean, professional look that elevates any event—from weddings and corporate functions to festivals and private parties.
Its cross-cable design eliminates the need for a center pole, allowing for an unobstructed interior and easier layout planning for tables, displays, or dance floors. The tent's durable aluminum frame and heavy-duty, weather-resistant vinyl canopy make it a reliable choice for both indoor and outdoor use, rain or shine.
Easy to transport, quick to set up, and built to withstand repeated use, the 20x20 High Peak Cross Cable Frame Tent is a top choice for rental companies and event professionals who demand both style and performance.
Specifications | |
Width | 20 ft. / 6.1m |
Length | 20 ft. / 6.1m |
Area | 400 ft / 37.2m² |
Eave Height | 8' / 2.4m |
Overall Height | 16' 9" / 5.1m |
Pitch | 8' 9" / 2.7m |
Complete Weight | 326 Lbs. / 148 Kg. |
Series / Brand | Pinnacle |
Class | Cross Cable |
Center Pole | No |
Style / Shape | High Peak |
Expandable | No |
Custom Printing Available | Yes |
Fabric Material | PVC Coated Polyester |
Fabric Material Weight | 16 oz. / yd2 / 540 gsm |
Fabric Translucency | Blockout |
Water Repellency | Waterproof |
Flame Resistant | Yes |
UV Resistant | Yes |
Mold and Mildew Resistant | Yes |
Frame / Pole Material | Aluminum |
Longest Component | 9'3" / 2.8m |
Persons required for setup | 2-3 |
Occupancy | 40 Sit Down Dinner - 67 Cathedral Seating |
