Interconnect Cable

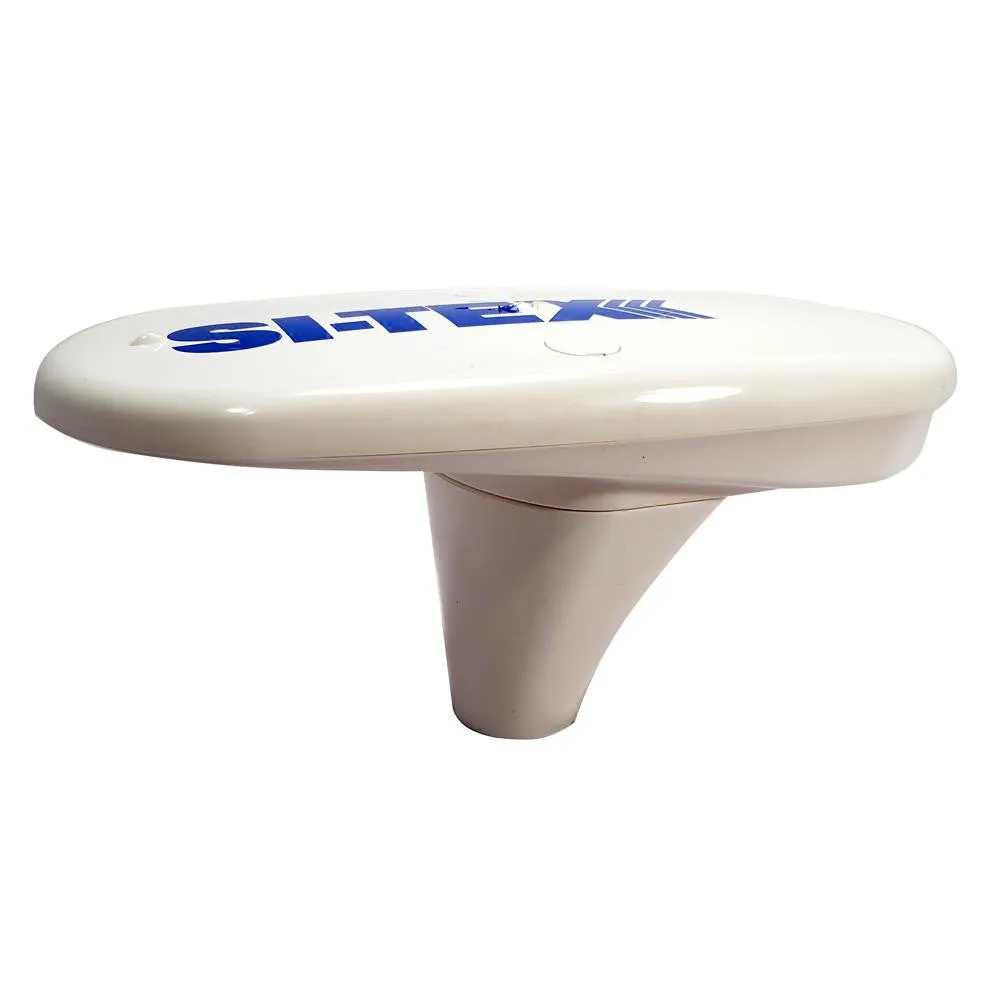

The Vector Compact GPS Compass offers superior navigation including accurate positioning and heading performance. V104 uses SBAS (WAAS, EGNOS, MSAS, etc.) for differential GPS position allowing Hemisphere GNSS to provide a low cost and highly effective positioning and heading based smart antenna.
The rugged and low-profile enclosure combines Hemisphere GNSS' Crescent Vector technology and two multi-path resistant antennas for accuracy, portability and simple installation. The smart antenna, measuring in less than a half meter in length, mounts easily to a flat surface or pole. The stability and maintenace-free design of Vector Compact provides traditional GPS position and heading at a low cost, replacing the combination of
low-accuracy GPS and fluxgate compass.
GPS Receiver Specifications:
- Receiver Type: Vector GPS L1
- Compass Signals Received: GPS
- Channels: 24
- GPS Sensitivity: -142 dBm
- SBAS Tracking: 2-channel, parallel tracking
- Update Rate: 10Hz standard (position and heading)
- Rate of Turn: 90x/s maximum
- Compass Safe Distance: 30 cm (11.8 in)
- Cold Start: <60 s (no almanac or RTC)
- Warm Start: <20 s typical (almanac and RTC)
- Hot Start: <5 s typical (almanac, RTC and position)
- Heading Fix: <20 s typical (valid position)
- Maximum Speed: 1,850 kph (999 kts)
- Maximum Altitude: 18.288 m (60,000 ft)
Power
Input Voltage: 8-36 VDC Power Consumption
Power Consumption: ~2.0 W nom.
Current Consumption: 0.16 A @ 12VDC
Power Isolation: Isolated to enclosure
Reverse Polarity Protection: Yes
Mechanical
Dimensions Not including mount: 29.9 L x 12.9 W x 4.5 H (cm)
10.2 L x 5.1 W x 1.8 H (in)
Dimensions Including mount: 25.9 L x 12.9 W x12.8 (cm)
10.2 L x 5.1 W x 5.0 H (in)
- Provides position,heading,pitch,roll and heave
- Excellent in-band and out-of-band interference rejection
- 2° (RMS) heading accuracy in an amazingly small form factor
- Integrated gyro and tilt sensors deliver fast star-up times and provide heading updates during temporary loss of GPS and Satellites
- Differential position accuracy of 1m, 95% of the time
- Accurate heading for up to 3 minutes during GNSS outages
- COAST technology maintains differentially corrected positioning for 40 minutes or more after loss of differential signal
- Offered as a Serial or NMEA 2000 Version
Product : SITEX VECTOR COMPACT S COMPASS W/NMEA 0183 INTERCONNECT CABLE
Manufacturer : SI-TEX
Manufacturer Part No : VECTORCOMPACTS
UPC : 010407510545
